| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | BS80A |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negociable |
| Packaging Details: | 25Kg plastic bags and wooden pallets or according to clients' requirement |
| Delivery Time: | 10 work days after getting payment |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 500,000 set per month |
| Product Name: | High Performance Light Fish Plate Rail Joint Bar For Rail Track | Application: | Railway / Track / Rail |
|---|---|---|---|
| Type: | 115RE, 132-136RE, UIC54, UIC60, 50Kg, Etc. | Material: | 45#, 50# |
| Length: | 4 Hole, 6 Hole | Standard: | BS, ASTM And DIN, Among Others. |
| Name:: | Customized Casting Steel Fish Plates / Rail Joint Bars For Rail Jointing | ||
| Highlight: | railroad fish plate,steel fish plates |
||

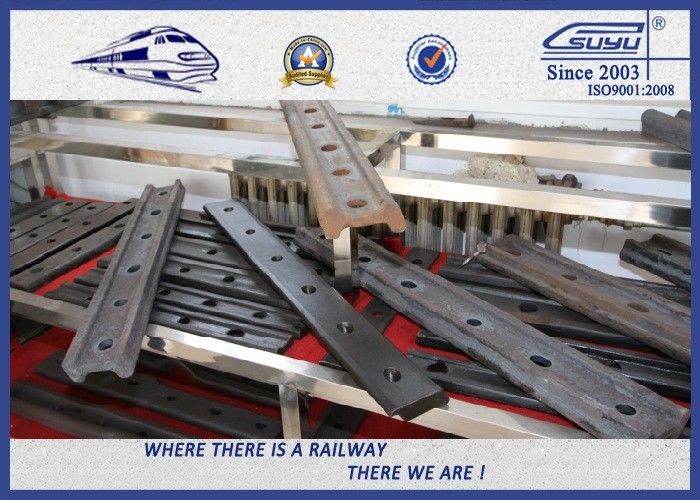

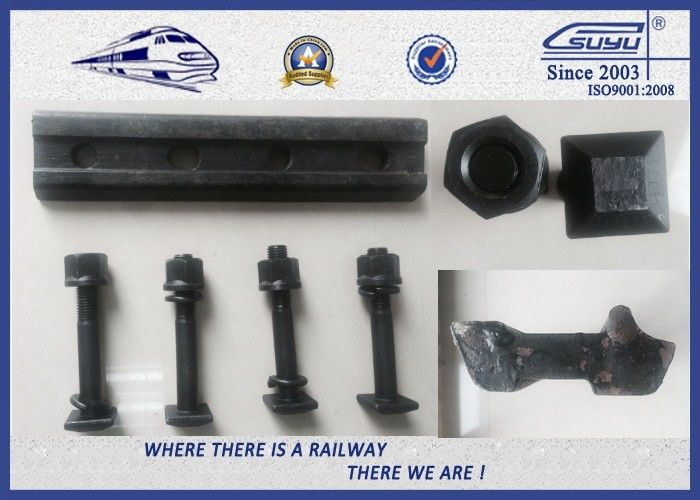

High performance light fish plate for rail track
Railway fish plate, it is also called rail joint bar or rail track. As one of the rail components, rail joint’s function is different from other rail components. Rail joint is a flat metal plate usually used to connect adjacent two rails by a number of or. Traditionally, railway fish plate is drilled with some holes on the ends of the sections to be connected. There are some holes in the end of rail track, which are used to be lined up with the holes in the railway fish plate and jointed with rail bolt. In general, railway fish plates are made of steel, but plastics and composites are alternative raw materials for rail joint.
We can supply all kinds of fasteners such as 43kg-75kg normal fishplate, 43kg-75kg insulation fishplate, 115RE,132RE America fishplate and so on.
We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.
|
Type |
Length/Diameter |
Weight(Kg) |
|
115RE |
4 hole- 24 ″ |
17.04 |
|
115RE |
6 hole -36 ″ |
25.56 |
|
132-136RE |
4hole-24 ″ |
17.75 |
|
132-136RE |
6hole-36 ″ |
26.63 |
|
UIC60 |
4 hole - 630/ ￠ 26 |
18.07 |
|
UIC60 |
4 hole-600/ ￠ 28 |
17.47 |
|
UIC60 |
4 hole - 630/ ￠ 25 |
18.1 |
|
UIC54 |
4hole |
14.34 |
|
UIC54 |
6hole- 800 |
19.94 |
|
BS80A |
4hole |
6.5 |
|
BS90A |
685.8 / ￠ 26 |
13.23 |
|
BS90A |
792.9/ ￠ 26 .2 |
15.34 |
|
90/91LB |
4 hole |
18.08 |
|
90/91LB |
6hole |
19.9 |
|
50Kg |
4hole |
14.3 |
|
50Kg |
6hole |
19.5 |
|
BS75R |
4hole |
6.56 |
|
BS60A |
4hole |
5.61 |
|
S49 |
4 hole |
9.71 |
Quotation necessity ( the more, the better )
We can prepare the packing based on customer's request.
We total have many professional and inspection test equipment, And different kinds of products have been awarded national quality supervision, inspection and quarantine ISO9001 quality management department
1.What the style of your company?
Our company is a OEM factory , all the product made by ourselves, and we can control the schedule very well.
2. What do you need to provide a quote?
Please kindly send us the drawing of your product. Details below should be included,
A.Dimension (Tolerance) B. Materials C. Surface finish D. Quantity
3.How do I know about the production?
We will double confirm you requirements and send you the sample before the mass production. During the mass production, we will keep you informed of any process. Besides, we will do 100% quality inspection before shipment.
4.How do I know about the delivery ?
We will inform you the tracking number once we get it from shipping agent. Also we will keep updating the latest shipping information for you.
5.What will you do for after sales?
When our metal parts apply to your products, we will follow up and await your feedback. Any question related to our metal parts, our experienced engineers are ready to help.
If you have any other models of rail/ rail fastener, welcome to contact me.
