| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | GB 30kg |
| Minimum Order Quantity: | 10000sets |
| Price: | Negociable |

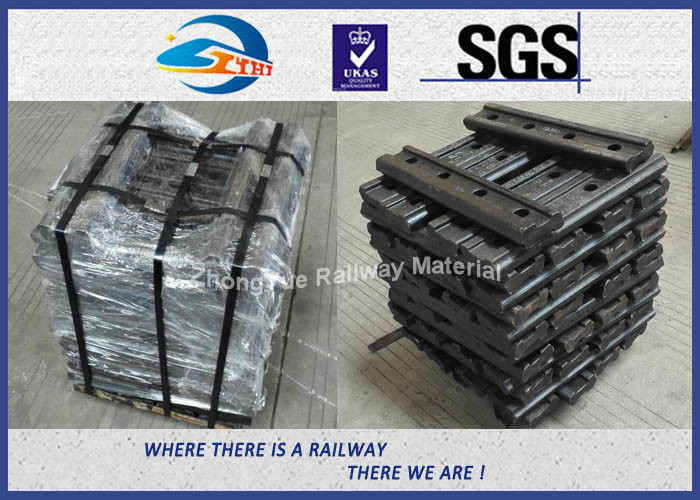

| Packaging Details: | steel string on steel rod |
| Delivery Time: | 45 days after deposit |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 1000 Tons per month |
| Product: | Railway Joints Bar | Quality Control: | SGS, BV, ABC |
|---|---|---|---|
| Type: | 4-Hole | Material: | Q235 |
| Surface: | Plain | ||
| Highlight: | railroad fish plate,steel fish plates |
||
High Quality Railway Fishplate for GB 30kg rail with 4 holes Joint Bar
Other Name: Joint Bar / Slice Bar, Fish Plate / Elissa
General Introduction
Hot rolled from high quality steel, accurately cut to lengths required and accurately punched to suit
proper bolt hole configurations. Stamped identifications to provide ease of installation, proper application
and quality identification for traceability.
Specifications
Standard Specifications for Quenched Carbon Steel Joint Bars: A joint (or pair) consists of two bars
without bolts. The opening between the rails is 1/8″. Bolt holes are alternately round and oval. Heat
treating consists of heating and oil quenching. Surface preparations such as shot blasting and painting
are available.
Capabilities Include
1. American Railway Engineering & M/W Association (AREMA) Specifications including carbon steel
or micro alloy steel materials.
2. Short toe on all rail sections.
3. Standard or Special Punching.
4. All rail sections available from typical sections, or fabricated and machined from steel plate (including
girder rail and crane rail).
5. Used for: Railroad – Transit – Industrial – Mining – Export
Standard: TB/T 2345-2008
Technical Parameter For Reference
|
Brand |
ZHONGYUE |
|||
|
Name |
Joint bar (Fishplate |
|||
|
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
|
115RE |
4 hole- 24″ |
17.04 |
45# |
50# |
|
115RE |
6 hole -36″ |
25.56 |
||
|
132-136RE |
4hole-24″ |
17.75 |
||
|
132-136RE |
6hole-36″ |
26.63 |
||
|
UIC60 |
4 hole - 630/Φ26 |
18.07 |
||
|
UIC60 |
4 hole-600/ Φ26 |
17.47 |
||
|
UIC60 |
4 hole - 630/ Φ25 |
18.1 |
||
|
UIC54 |
4hole |
14.34 |
||
|
UIC54 |
6hole- 800 |
19.94 |
||
|
BS80A |
4hole |
6.5 |
||
|
BS90A |
685.8 / Φ26 |
13.23 |
||
|
BS90A |
792.9/ Φ26.2 |
15.34 |
||
|
90/91LB |
4 hole |
18.08 |
||
|
90/91LB |
6hole |
19.9 |
||
|
50Kg |
4hole |
14.3 |
||
|
50Kg |
6hole |
19.5 |
||
|
BS75R |
4hole |
6.56 |
||
|
BS60A |
4hole |
5.61 |
||
|
S49 |
4 hole |
9.71 |
||
Company Introduction:
ZhongYue is one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.

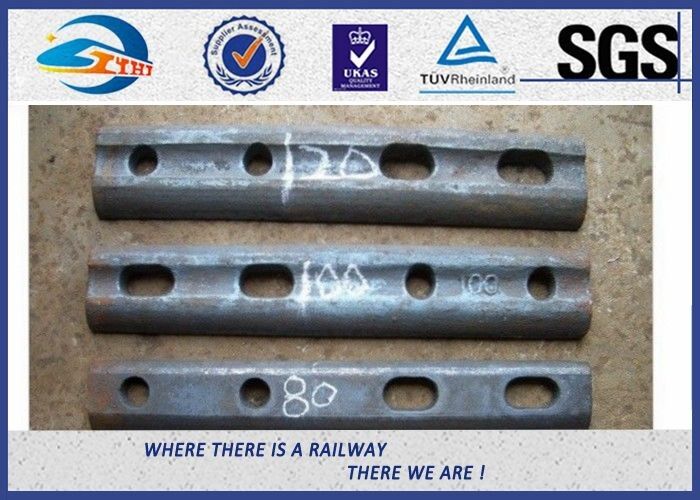

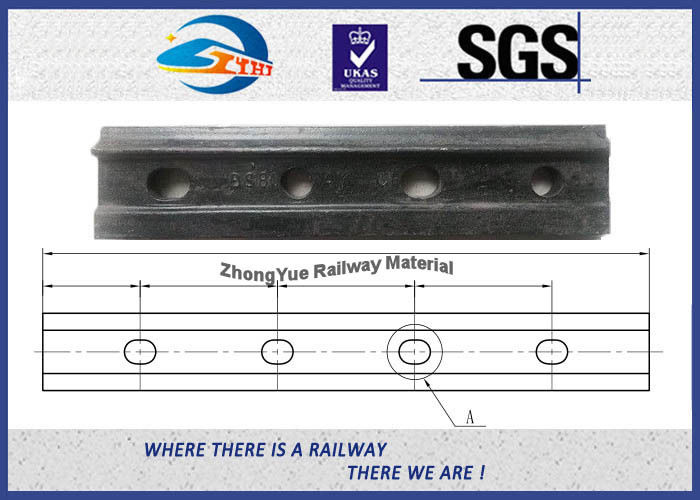

Product Photos for reference
